Steam Generators

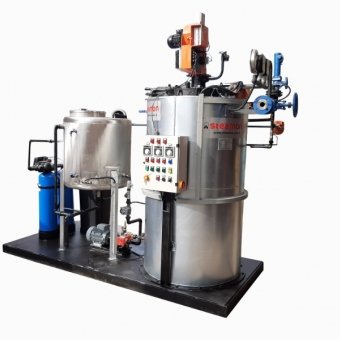

Vertical Coil Steam Generator
Because water volume is low, time to steam-up is very short.
With water-tube coil, vertically designed and tested Heaton® steam generators, you save on both installation space and fuel.
Because water volume is low, time to steam-up is very short.
With no steam space, it is a safe steam generator.
Available as a single unit across a 300 kg/h to 3,000 kg/h capacity range, or in cascade installations up to 10,000 kg/h capacity.
Allows dual-fuel operation on gas, liquid fuel, or both together.
Its vertical design saves on installation space.
Being three-pass and drawing on waste flue-gas heat delivers fuel savings.
Adding an economizer, and using the heat of the hot flue gas that would otherwise be released to atmosphere, can reach up to 98% efficiency.
The built-in droplet-separator produces dry steam.
The package design makes transport easy. Since it has its own base, no separate foundation needs to be built.
With automatic control and an inverter-driven feed pump, it produces steam at the flow rate your business needs, delivering fuel savings.
Residue from combustion is removed together with the waste gas thanks to the vertical design. It collects at the bottom of the steam generator and is removed via a cleanout cover.
Heaton® Vertical Coil Steam Generator is manufactured by İtimat Kazan.
