Steam Boilers
Steam Boiler

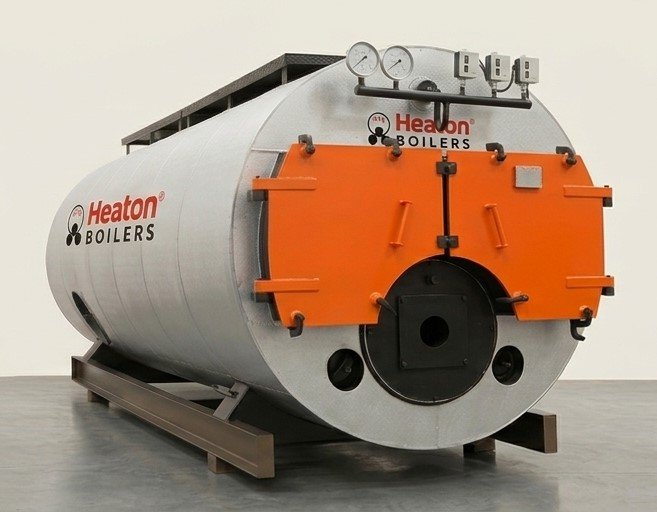

Manufactured across a 400 kg/h - 25 ton/h capacity range, three-pass Heaton® steam boilers use steel plate 20% thicker than other manufacturers, making them longer-lasting and more robust.
Liquid- and Gas-Fired, Three-Pass, High-Efficiency Steam Boiler
The most suitable boiler for economical steam production: Heaton® steam boilers operate at high steam pressures thanks to their fire-tube construction, modern three-pass design and fully cylindrical form.
Years of experience guarantee high quality.
Steam Boiler Design
A spacious combustion chamber (furnace) ensures complete combustion. This keeps harmful emissions low, and the three-pass feature further reduces NOx emissions.
The water-cooled, generously sized reversal chamber behind the combustion chamber provides high operating safety and a long service life.
A sufficiently sized steam space produces high-quality, dry steam.
Boiler plate 20% thicker than other manufacturers use is employed. This makes the boiler 20% longer-lasting and more robust.
Thanks to the special design of Heaton® Steam Boilers, they have larger heat transfer surfaces. Flue gas temperatures are much lower compared to equivalent steam boilers.
Heaton® Steam Boilers allow easy cleaning and inspection. They are long-lasting and suited to heavy operating conditions.
Heaton® Steam Boilers run on diesel (gas oil), heavy fuel oil, gas (natural gas, LPG, LNG) or biogas, and when used with an integrated economizer achieve up to 95% combustion efficiency. This significantly reduces operating costs and speeds up return on investment.
Design and Manufacturing
Designed and manufactured with TSE and CE certification, backed by 50 years of manufacturing experience.
Large Water and Steam Volume
Suited to heavy operating conditions and sudden steam demand.
Wide Heating Surface
High thermal efficiency.
Modern Design
Low fuel consumption thanks to a water-cooled reversal chamber and full heat insulation.
No Special Burner Required
Thanks to low gas-side resistance, off-the-shelf burners available on the market can be used. There is no need for a high-pressure burner, saving on operating and investment costs while also keeping burner noise levels low.
Wide Capacity Range
400 kg/h - 25 ton/h.
Installed Without a Foundation

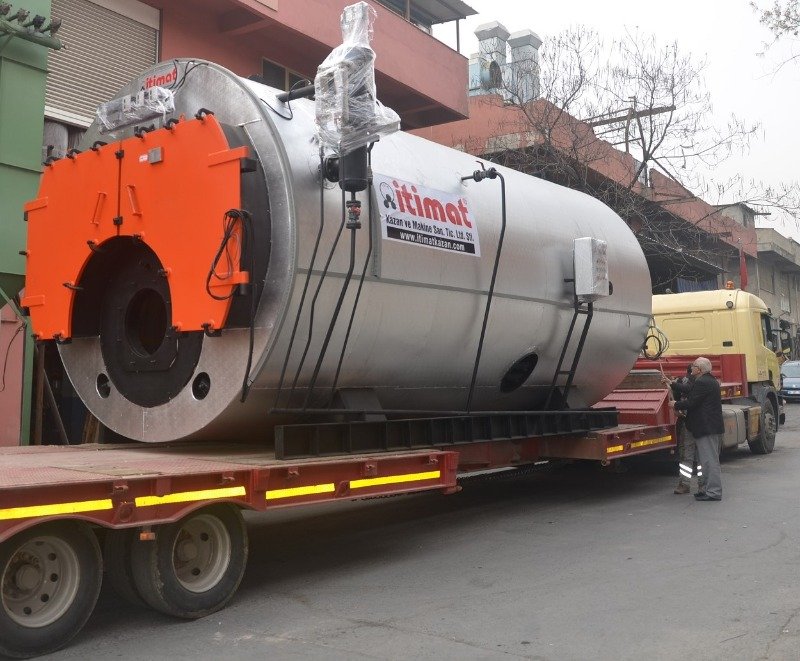

Heaton® steam boilers sit on thick-profile feet. No special foundation is required. The profile feet make transport and installation easier and protect the boiler from corrosion.
Steam Boiler Auxiliary Equipment

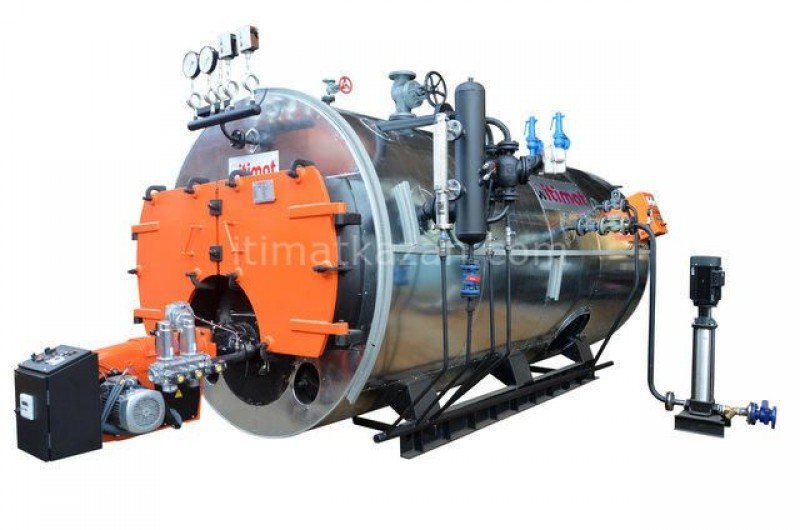

Heaton® steam boilers and their auxiliary equipment are fully compatible with each other, saving on cost and installation time. Combustion systems, water softening, feedwater pumps and condensate tanks, economizers, heat-recovery systems, automatic bottom and surface blowdown (TDS) valves, and control panels that manage the whole system complete the energy system.
Heaton® steam boiler control panels can command every kind of control and adjustment mechanism on the boiler. Weekly programming is also available, as well as fully automatic operation without the need for 24- or 72-hour supervision.
Manufactured with our company's over 50 years of manufacturing experience and the most suitable designs from our R&D department, our steam boilers deliver significant fuel savings across every steam capacity, model and fuel type.
With their superior design and large heat transfer surfaces, steam boilers are integrated together with equipment that works in harmony, including the burner, feed pump, safety equipment, control and safety panel, condensate tank and water softening system, and delivered to the heat and energy sector as complete packages.
Steam Boiler Prices
Three-pass, modern-design steam boilers are suitable for factories and industrial facilities of many sizes. Steam boiler prices vary according to fuel type, operating pressure, optional equipment, and the product's many technical features. You can learn about different pricing by contacting us, and get the ideal model for your factory at the right price right away.
Frequently Asked Questions
What capacities are steam boilers manufactured in?
Heaton® steam boilers are manufactured in the 400 kg/h - 25 ton/h capacity range.
What fuels do Heaton® steam boilers run on?
They run on diesel (gas oil), heavy fuel oil, gas (natural gas, LPG, LNG) or biogas.
What efficiency does a steam boiler achieve?
When used with an integrated economizer, up to 95% combustion efficiency is achieved, significantly reducing operating costs and speeding up return on investment.
What is the advantage of a three-pass steam boiler?
The spacious combustion chamber (furnace) ensures complete combustion, keeping harmful emissions low, and the three-pass feature further reduces NOx emissions. The water-cooled, generously sized reversal chamber behind the combustion chamber provides high operating safety and a long service life.
Why does a steam boiler last longer?
It uses boiler plate 20% thicker than other manufacturers, making the boiler 20% longer-lasting and more robust.
Heaton® Steam Boiler is manufactured by İtimat Kazan.
