Steam Generators
Mobile Steam Plant
Steam needs on sites that use steam for concrete curing, such as highways, viaducts, bridges and housing, arise in different locations. A mobile steam plant can be moved wherever you need it, meeting your site's steam and hot-water requirements.
Do you need a mobile steam plant, or do you want to set up a steam plant outside your building?
Steam needs on sites that use steam for concrete curing, such as highways, viaducts, bridges and housing, arise in different locations. A mobile steam plant can be moved wherever you need it, meeting your site's steam and hot-water requirements.
You may not want to set aside space for a boiler room at your factory. By positioning a Heaton® Mobile Steam Plant next to your building, you safely meet your facility's steam needs.
This saves space at your factory.
The mobile steam plant contains every system component, from the water treatment unit to the steam trap.
The Heaton® Mobile Steam Plant is manufactured with a steam production capacity of 100-5,000 kg/h, liquid- or gas-fired.

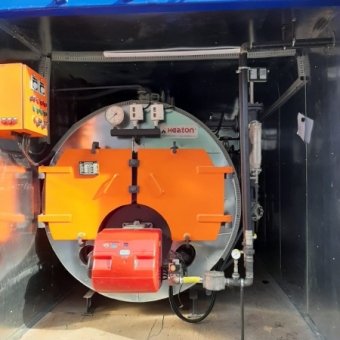

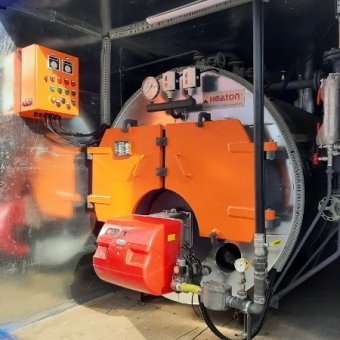

The Heaton® Mobile Steam Plant is shipped already assembled with the following products:
- Heaton® steam boiler or steam generator
- Condensate tank
- Water softener
- Clean water tank and hydrophore
- Main steam valve
- Steam distribution manifold
- Pressure-reducing station
- Droplet-separator
- Steam dryer
- Steam trap and condensate collection station
- Hot water calorifier
- Piping, insulation and electrical connections between all products
- Natural gas line and equipment (gas valve, gas filter, shut-off, etc.)
- Insulated, heated fuel tank for storing various liquid fuels
- Flue suited to liquid or gas fuel
- Control panel
- Interior lighting
- Interior ventilation compliant with gas company approval
- Insulation with rock wool and galvanized sheet
- Optional custom exterior cladding
- Electrical safety switch
Ready to operate once connected to power. With its assemble-and-disassemble feature, it is the indispensable steam plant for construction sites.
Frequently Asked Questions
What is a mobile steam plant?

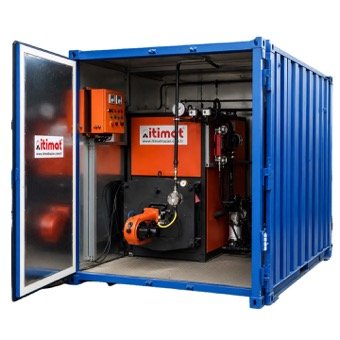

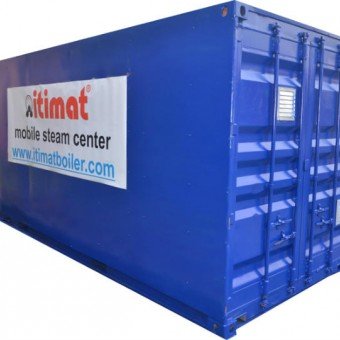

It is all the equipment needed to produce steam and hot water, mounted inside a container that can be transported to the desired location. It is ready to operate once connected to power; with its assemble-and-disassemble feature, it is well suited to construction sites.
Does a mobile steam plant contain a steam boiler or a steam generator?
Either can be used, depending on need. The mobile plant is manufactured by installing a Heaton® steam boiler or steam generator inside it, which is why the product is called a "plant."
What capacities is the mobile steam plant manufactured in?
The Heaton® Mobile Steam Plant is manufactured with a steam production capacity of 100-5,000 kg/h, liquid- or gas-fired.
Where is a mobile steam plant used?
It is used on sites where steam needs arise in different locations for concrete curing, such as highways, viaducts, bridges and housing. Businesses that do not want to set aside space for a boiler room at their factory also position the plant next to the building to save space.
What equipment does the mobile steam plant come with?
It contains every system component, from the water treatment unit to the steam trap: condensate tank, water softener, clean water tank and hydrophore, main steam valve and distribution manifold, pressure-reducing station, separator, steam dryer, hot water calorifier, natural gas line equipment, flue, control panel, interior lighting and ventilation, insulation and electrical safety switch.
Heaton® Mobile Steam Plant is manufactured by İtimat Kazan.
